Folding Arm Crane
subcategory：Folding Arm Crane

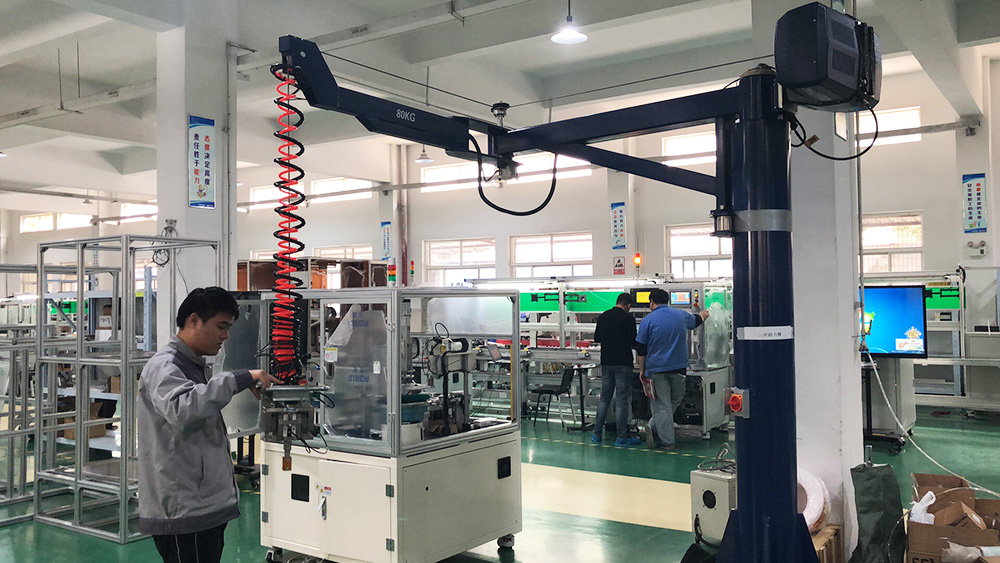

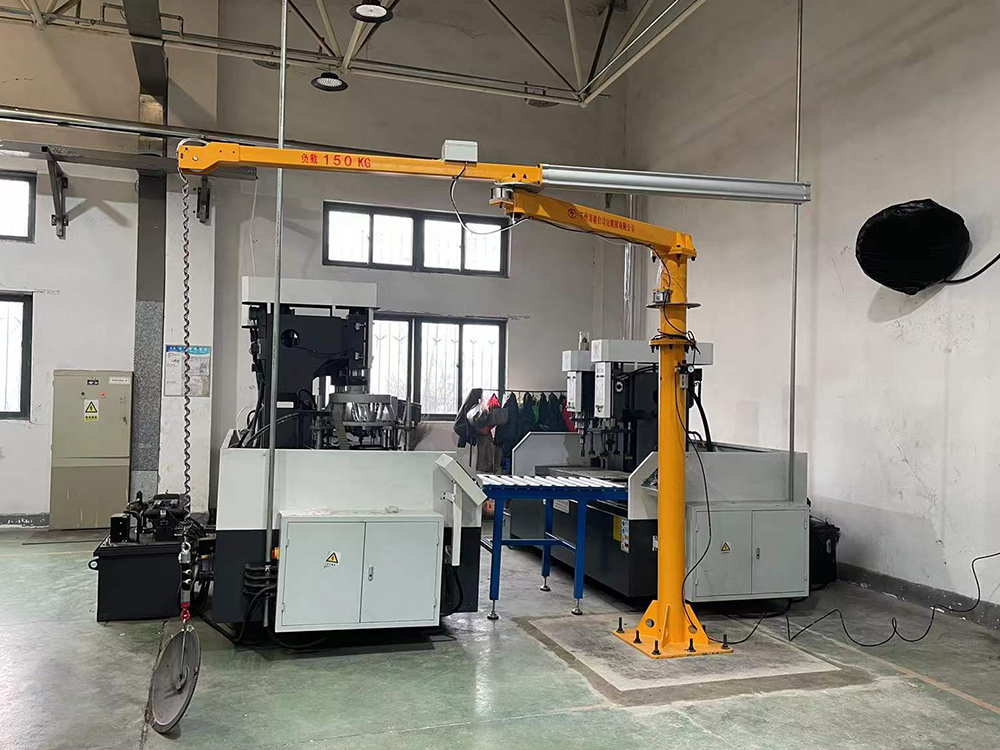

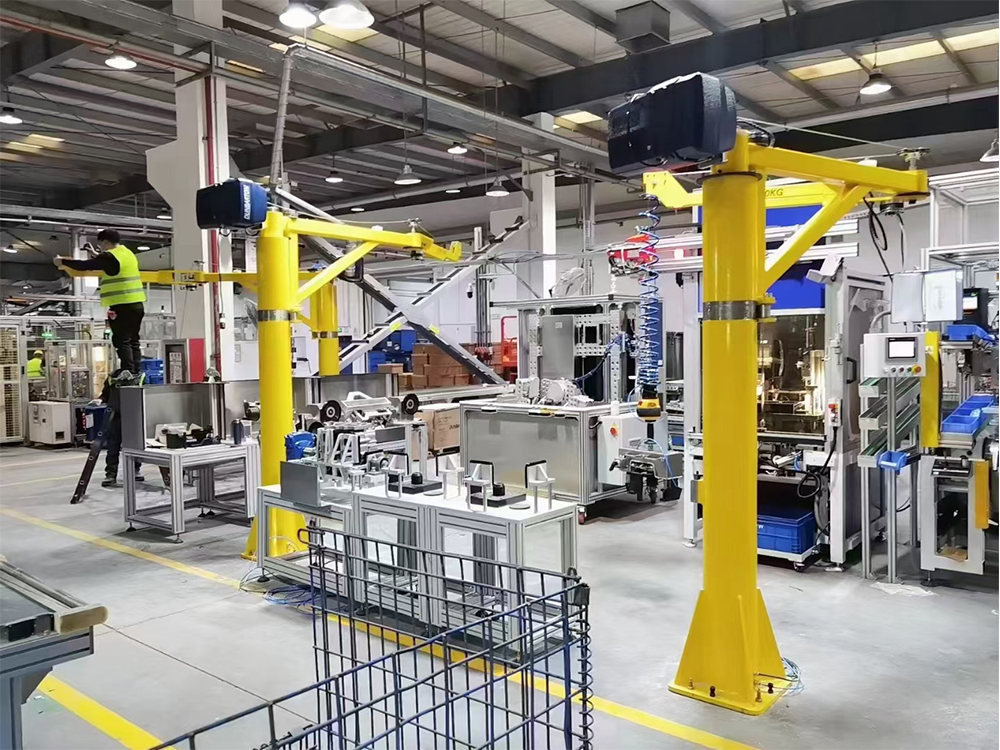

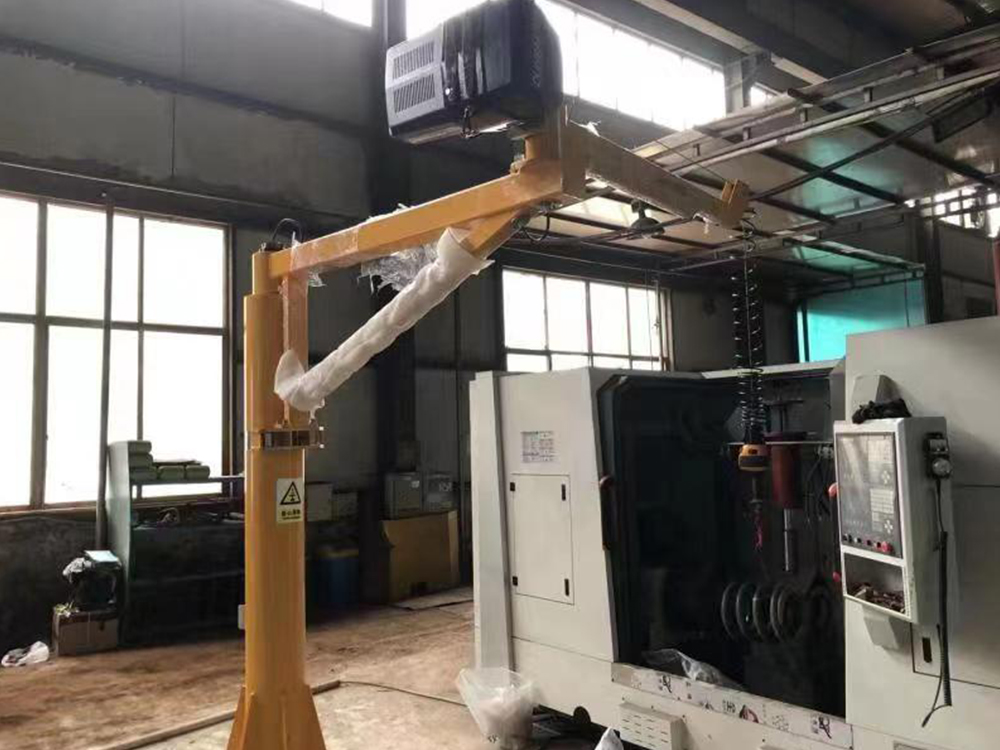

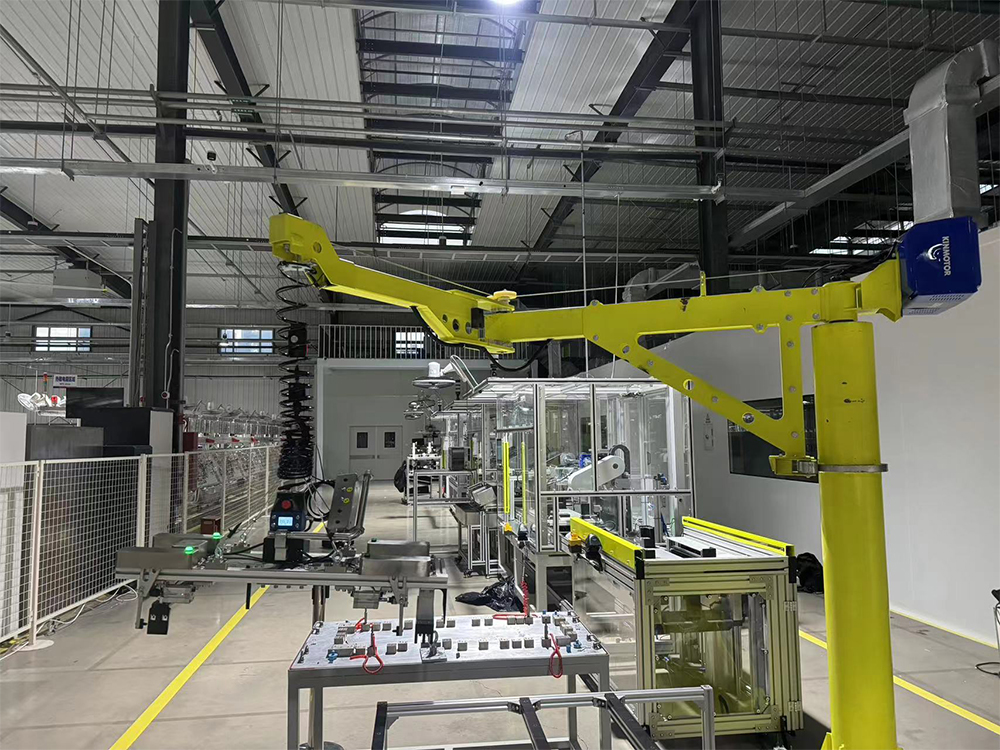

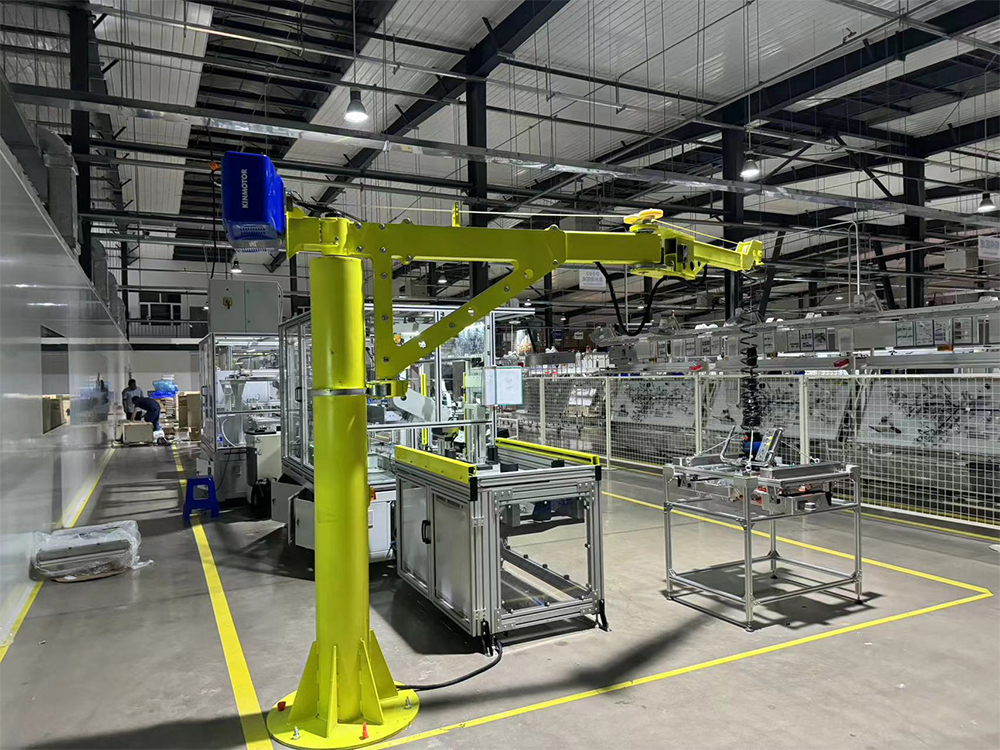

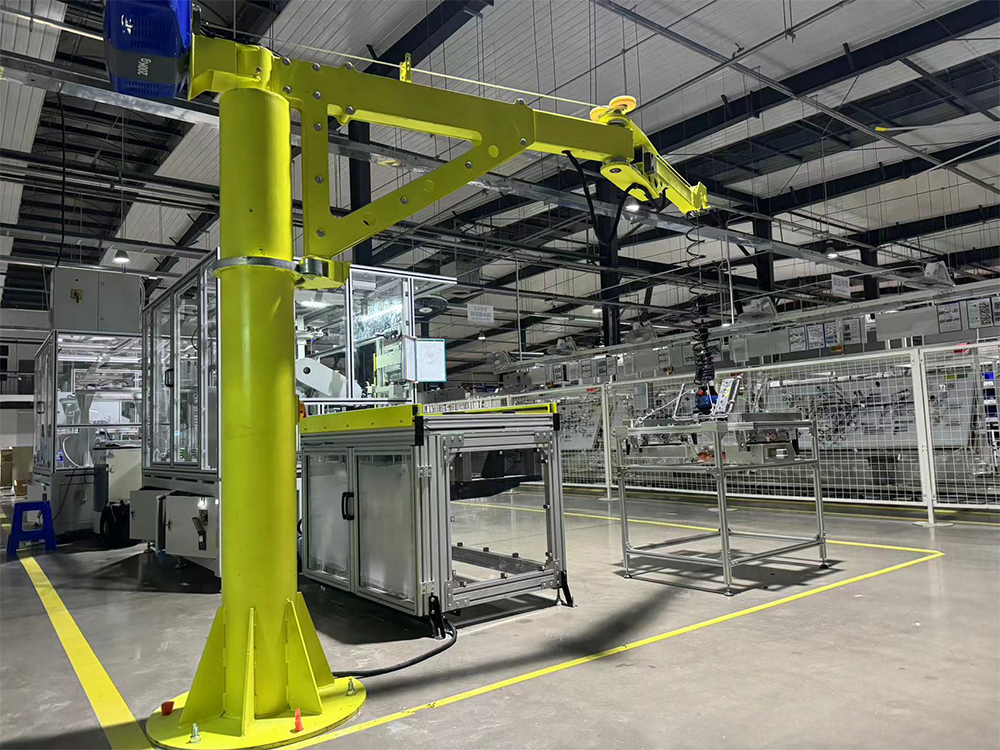

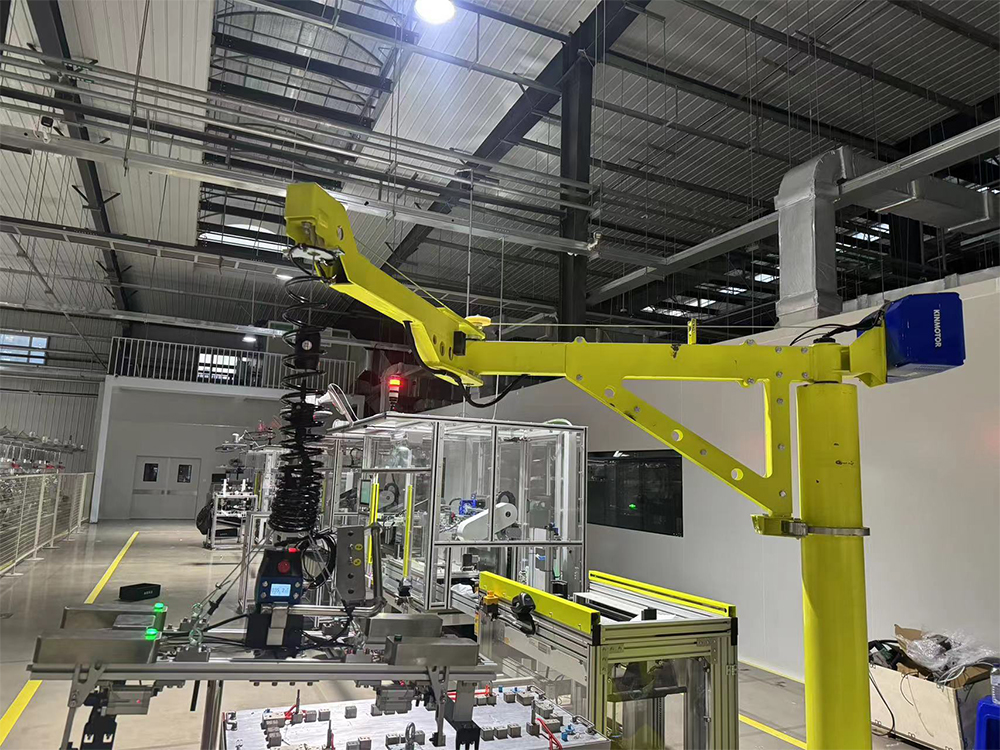

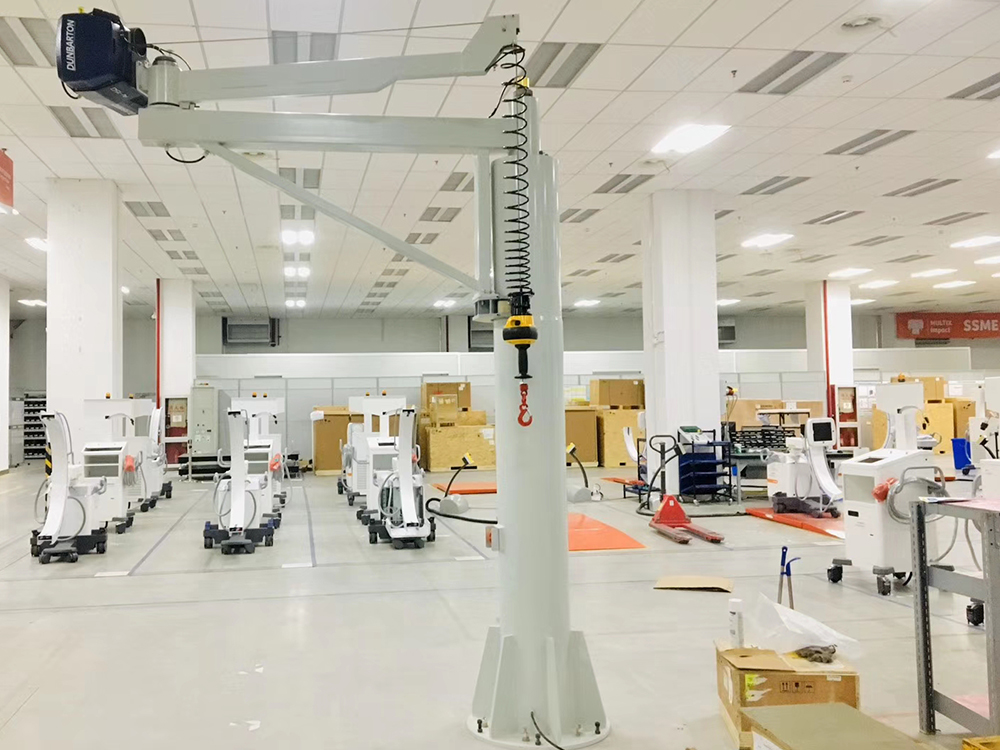

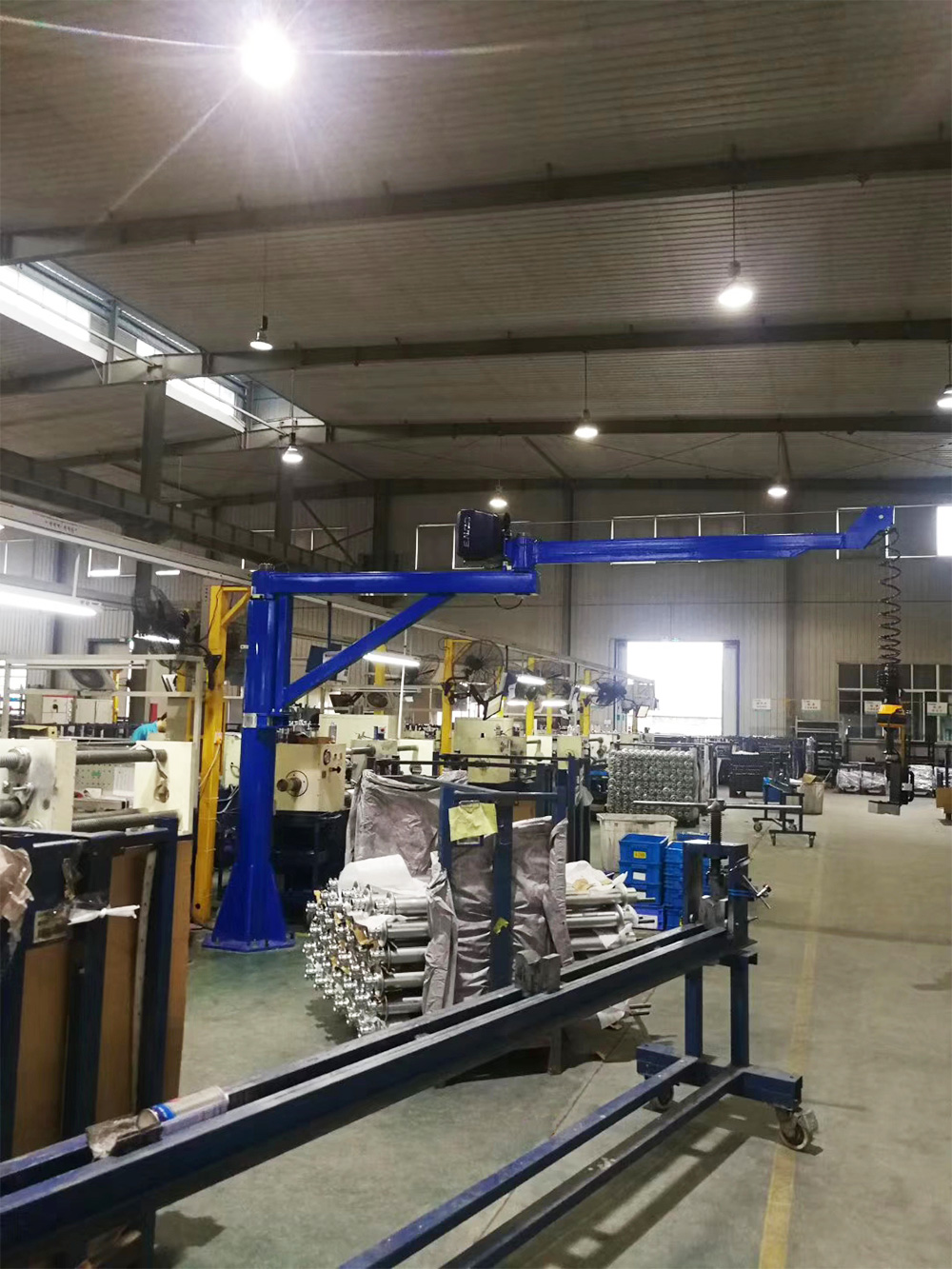

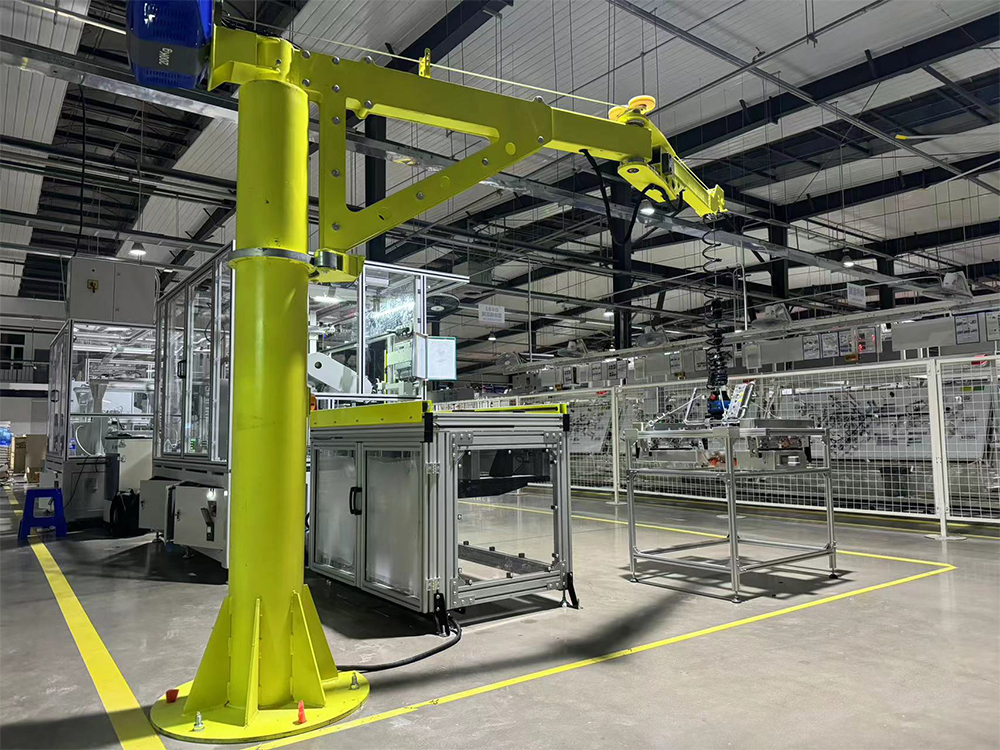

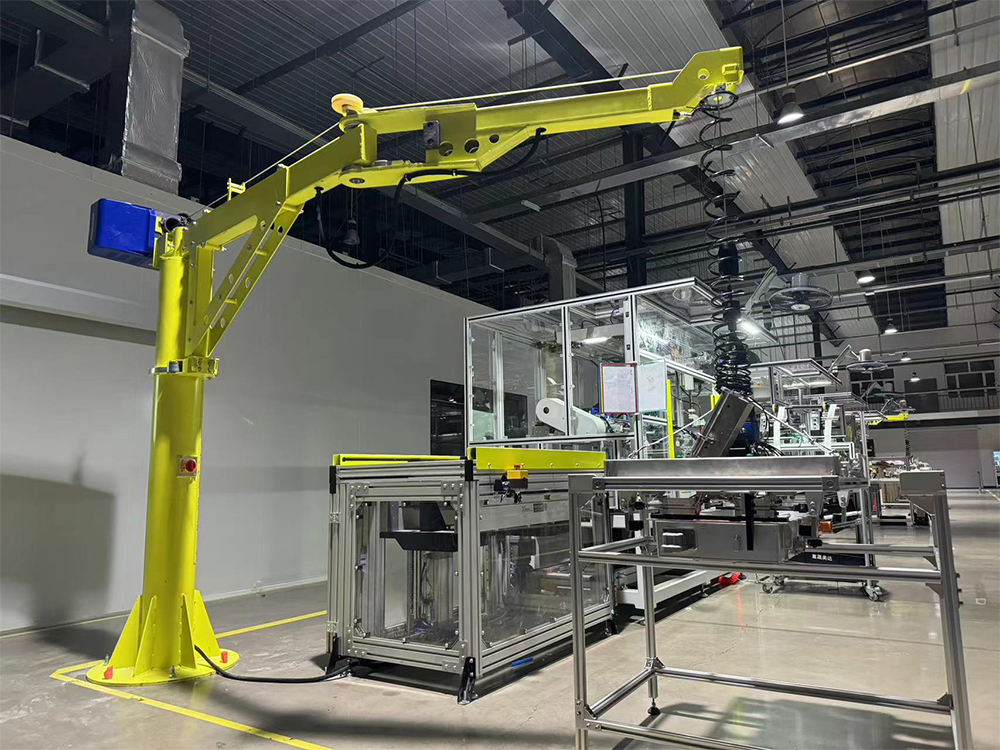

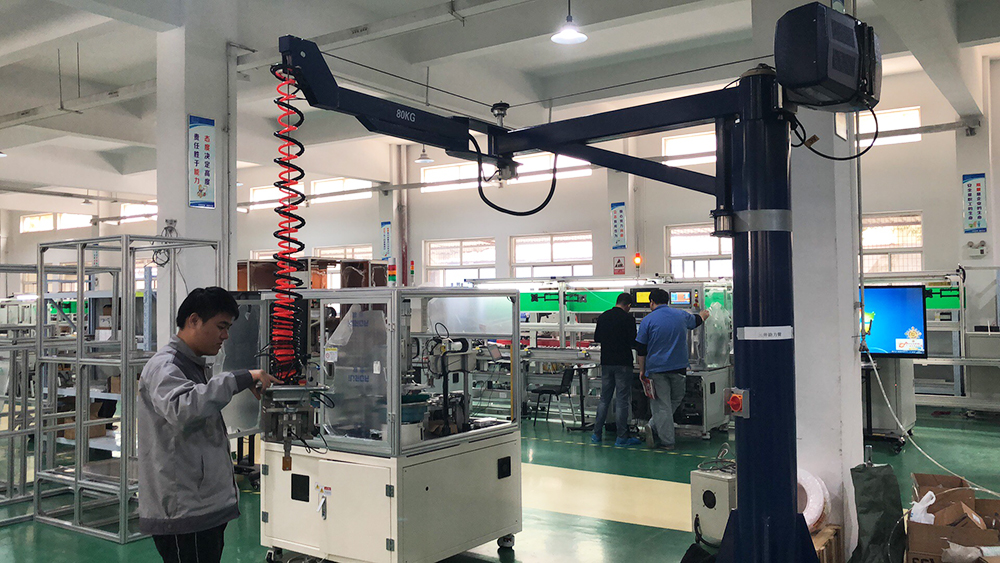

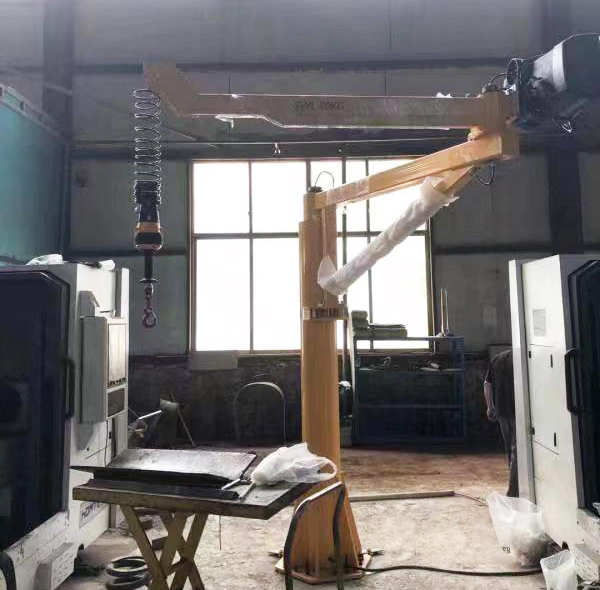

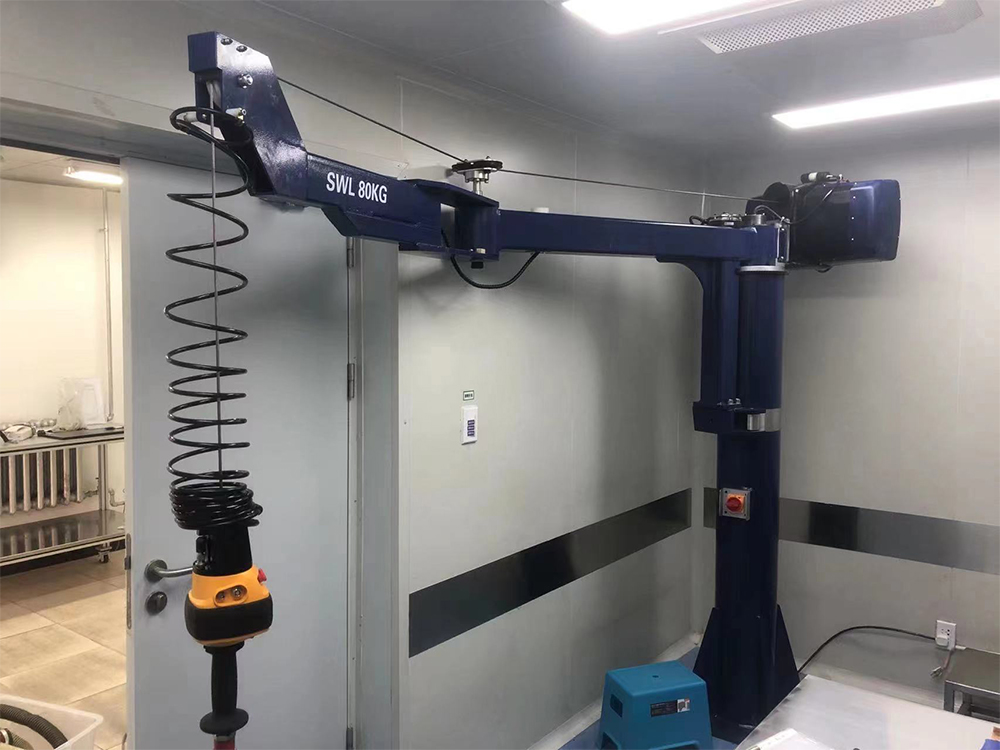

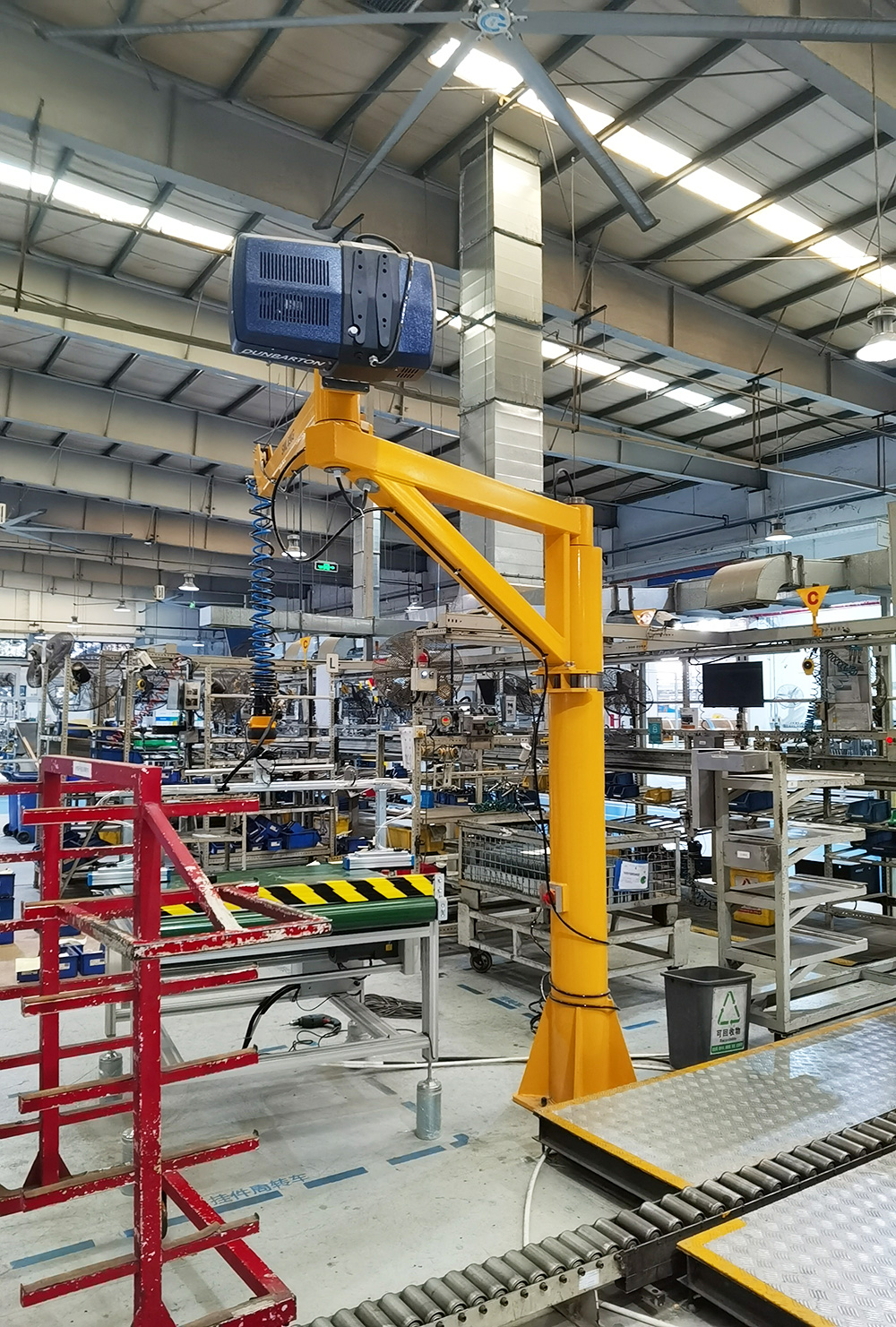

The SZHJ-RS series is a flexible cable-type assist manipulator, suitable for occasions with fast handling rhythm. It is characterized by a large vertical handling stroke and is available in two types: electric and pneumatic. Equipped with power/air failure protection devices, it ensures safety and reliability while featuring flexible operation.
Contact
Product consulting
分享：
| Equipment Model | Rated Load G | Swing Radius R1 | Lifting Stroke H | Maximum Lifting Height H1 | Lowest Point H2 | Air Pressure P | Equipment Weight |
| SZHJ-RS-30 | 30KG | 2500mm | 1000mm | 2000mm | H1-H | 0.5Mpa or above | 110KG |
| SZHJ-RS-50 | 50KG | 2500mm | 1000mm | 2000mm | H1-H | 0.5Mpa or above | 160KG |
| SZHJ-RS-100 | 100KG | 2500mm | 1000mm | 2000mm | H1-H | 0.5Mpa or above | 230KG |
| SZHJ-RS-200 | 200KG | 2500mm | 1000mm | 2000mm | H1-H | 0.5Mpa or above | 360KG |
| SZHJ-GDXG-300 | 300KG | 2500mm | 1000mm | 2000mm | H1-H | 0. 5Mpa or above | Customized |
The SZHJ-RS series is a flexible cable-type assist manipulator, suitable for occasions with fast handling rhythm. It is characterized by a large vertical handling stroke and is available in two types: electric and pneumatic. Equipped with power/air failure protection devices, it ensures safety and reliability while featuring flexible operation.
