Mobile Assist Manipulator
subcategory：Mobile Assist Manipulator

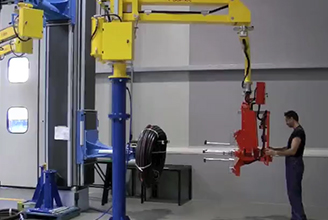

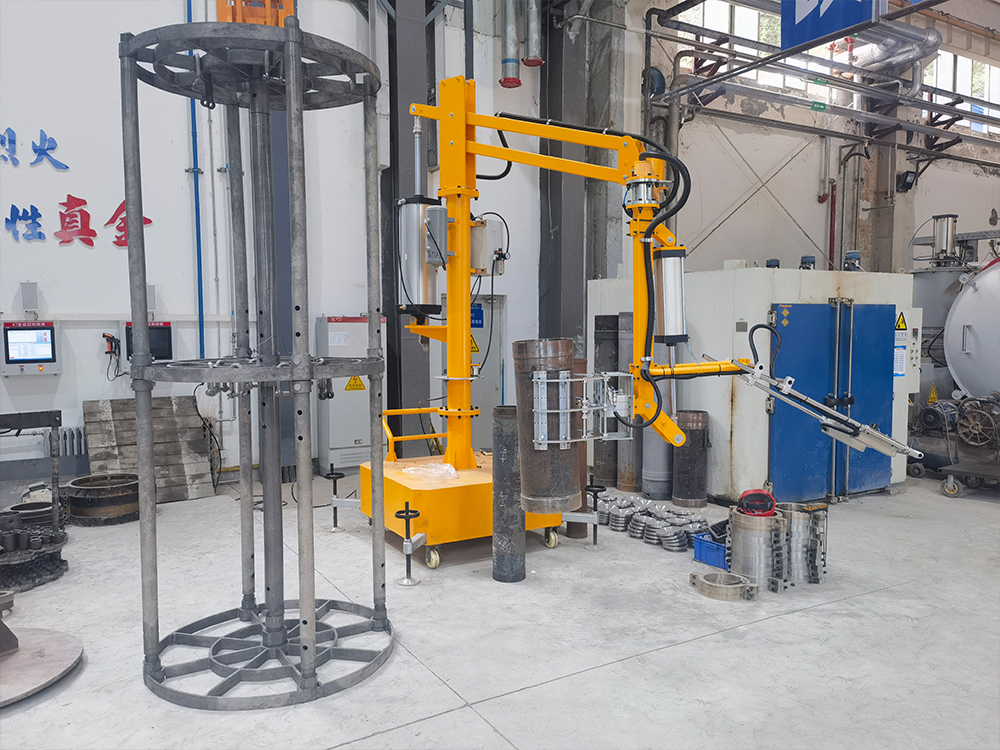

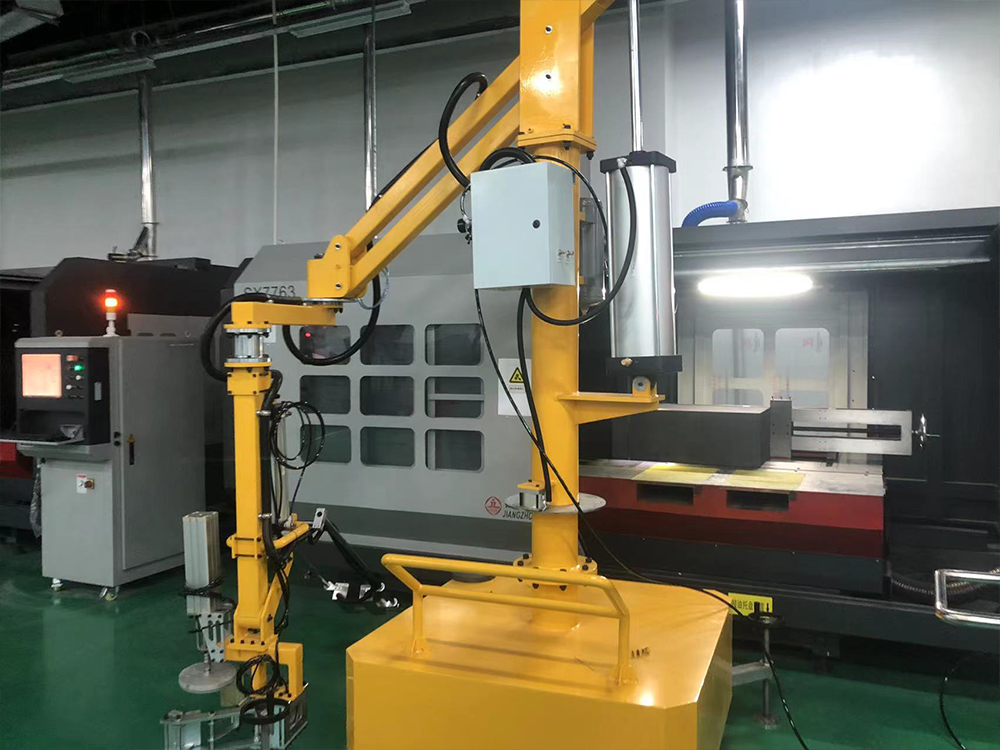

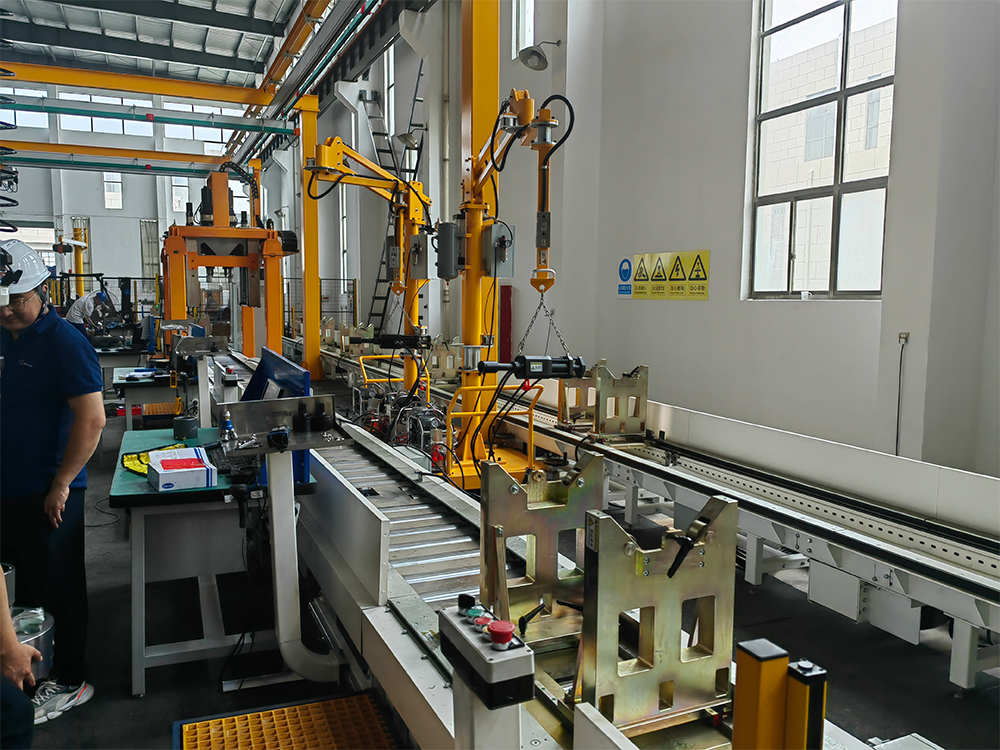

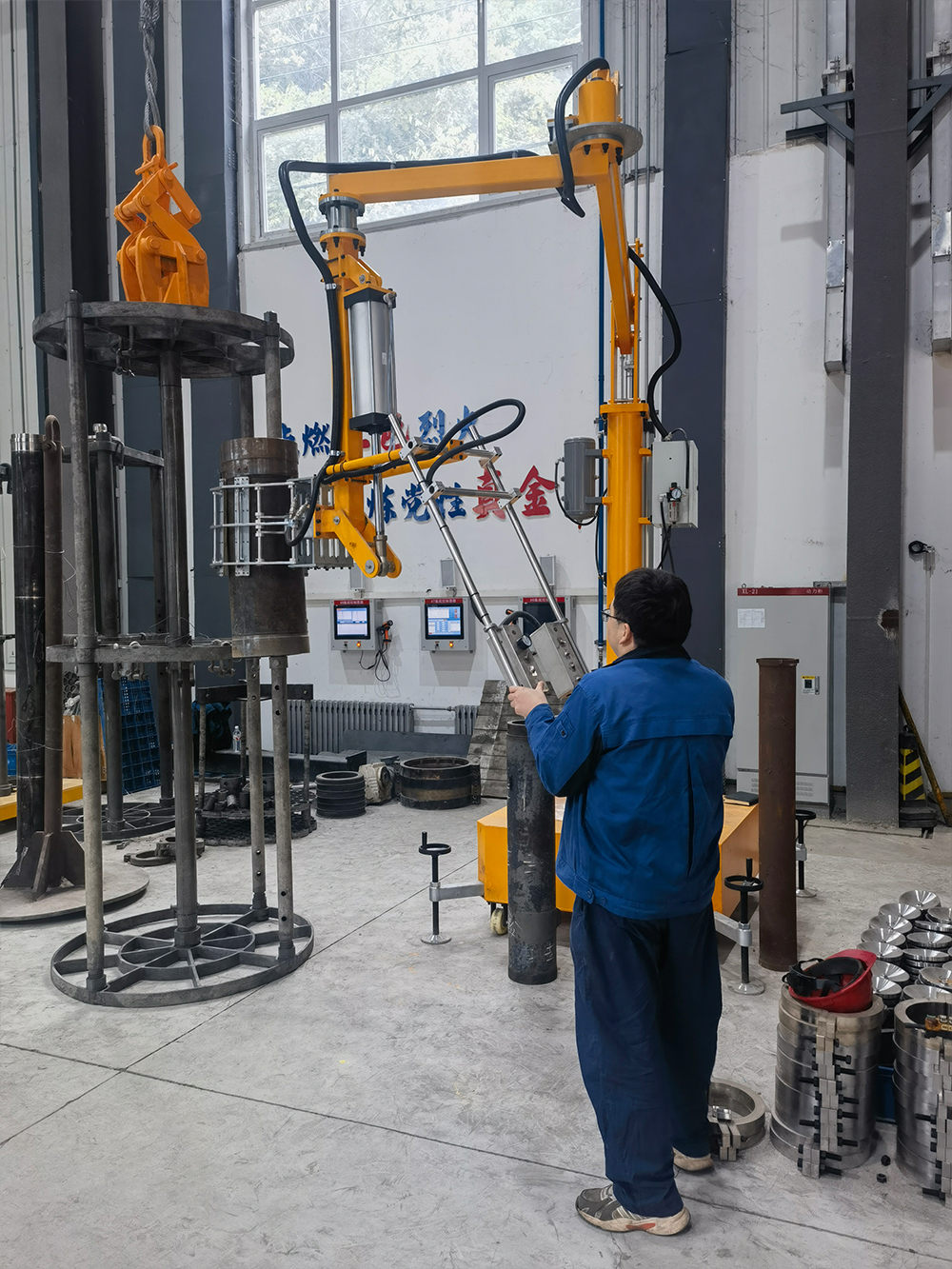

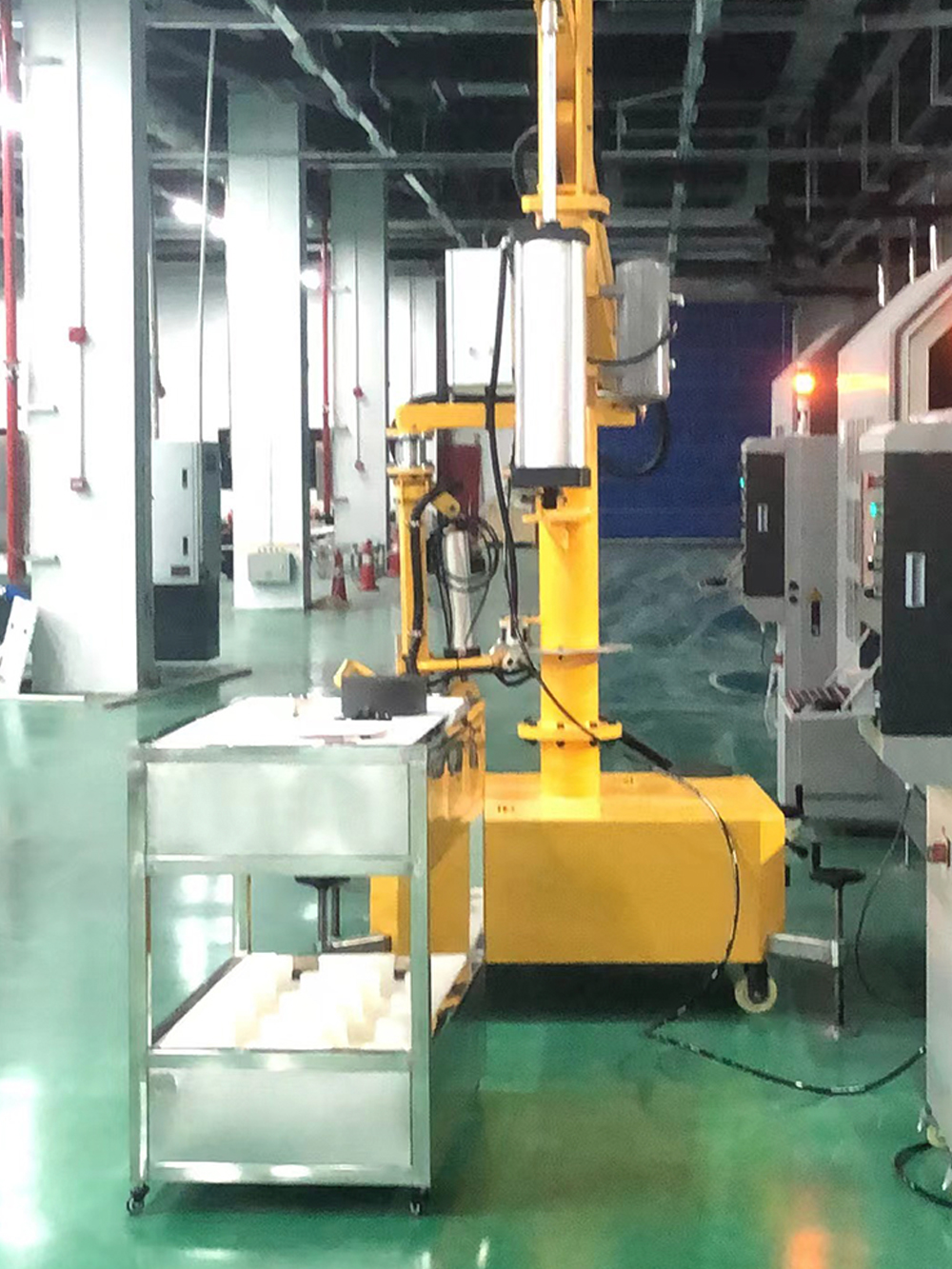

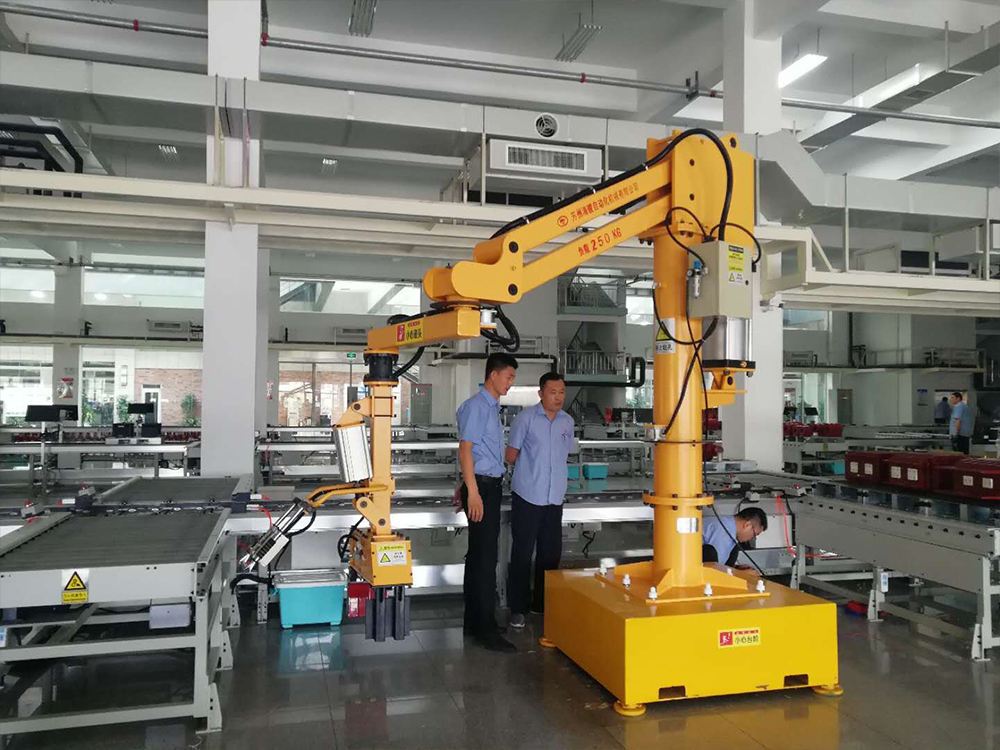

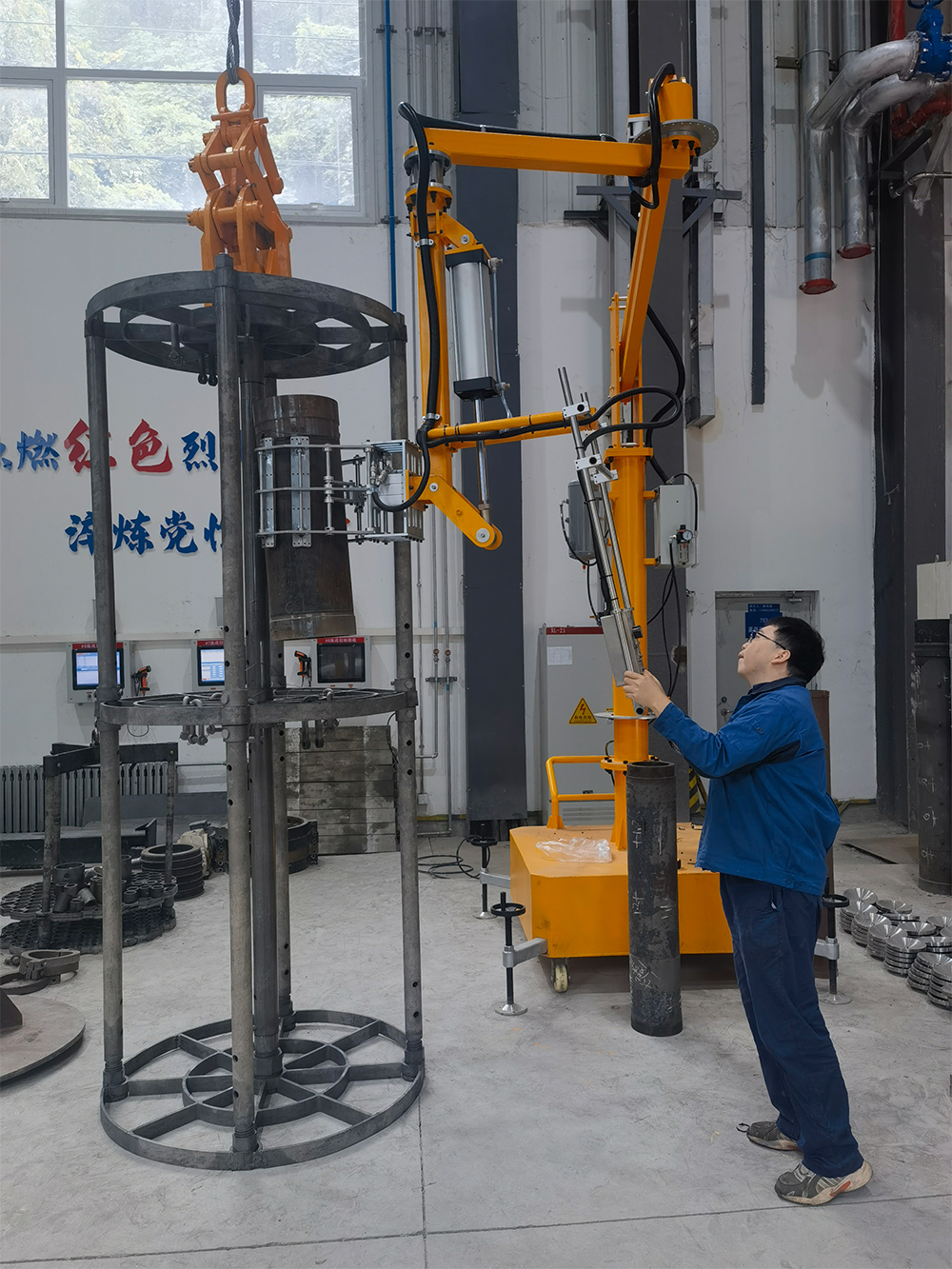

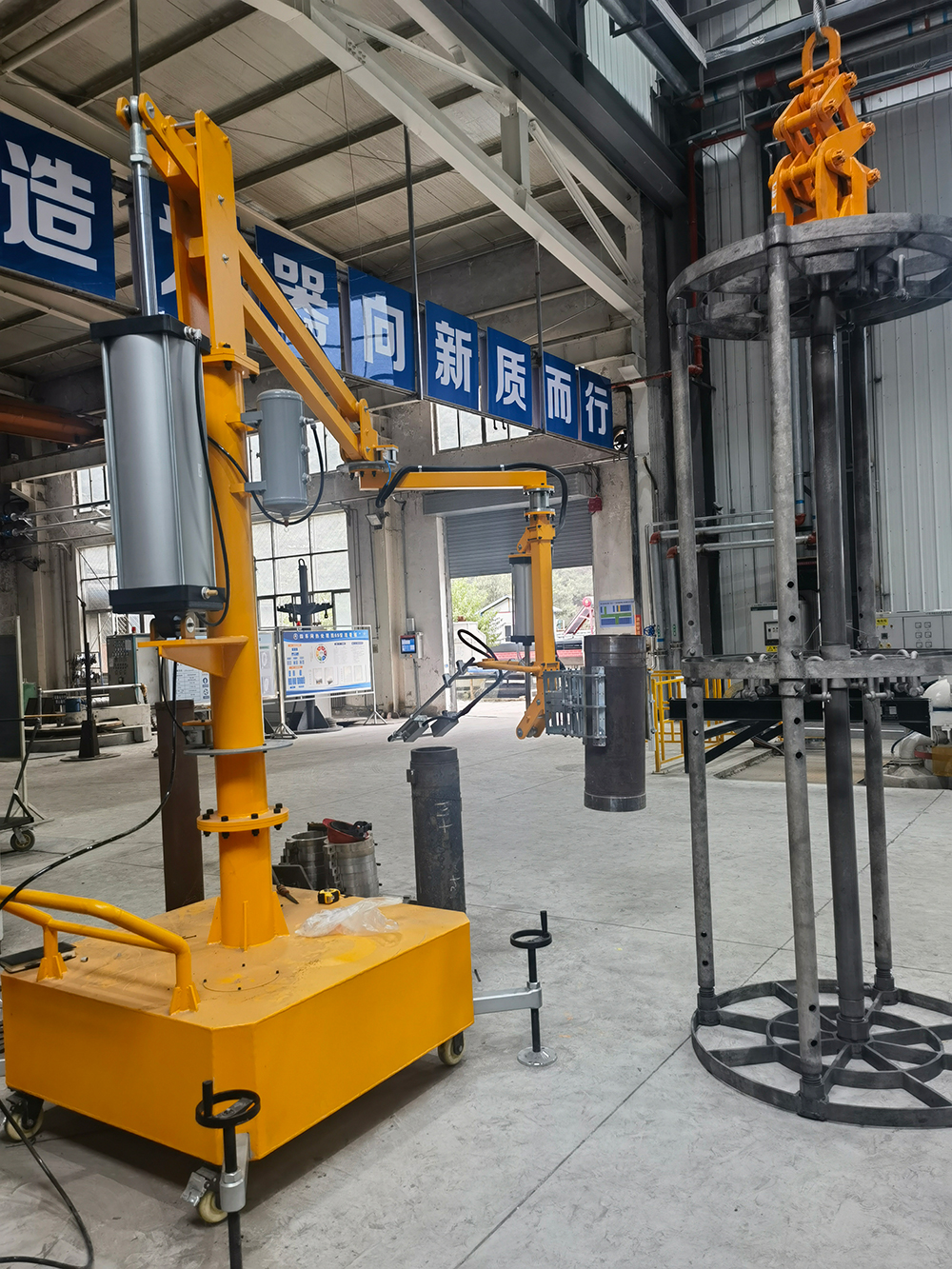

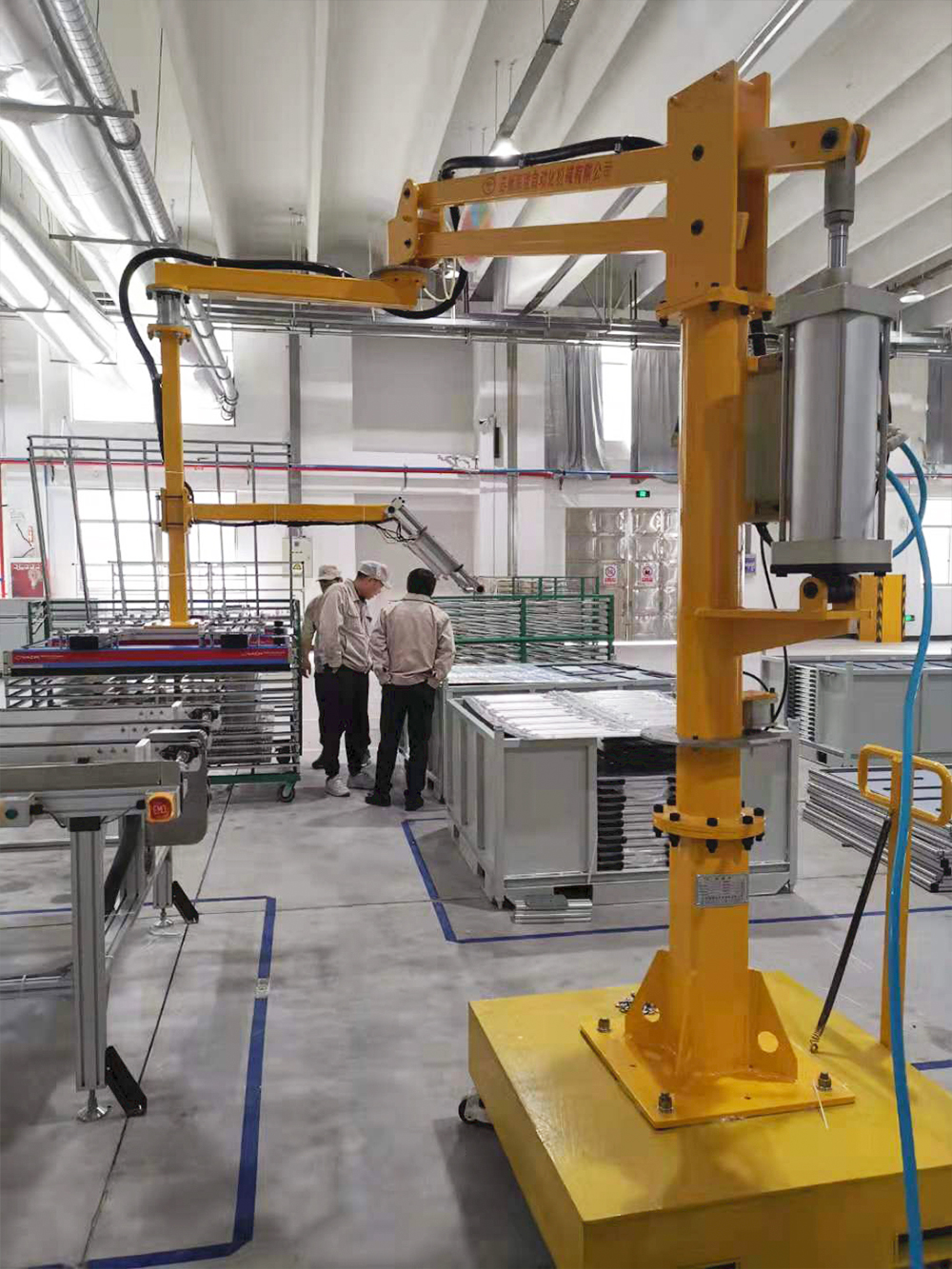

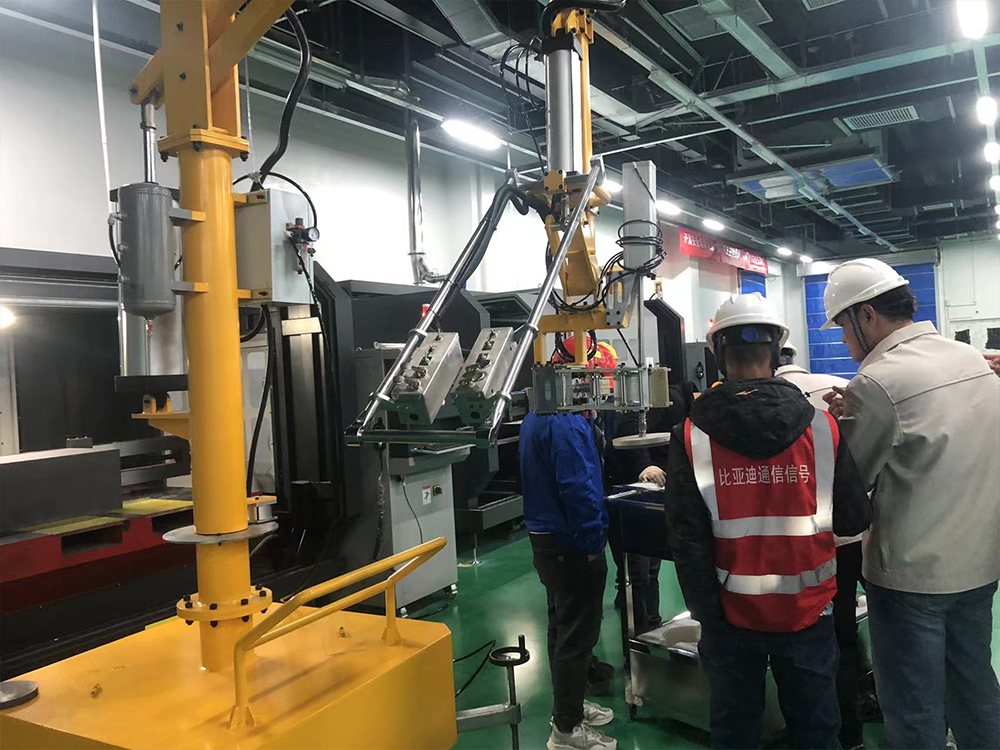

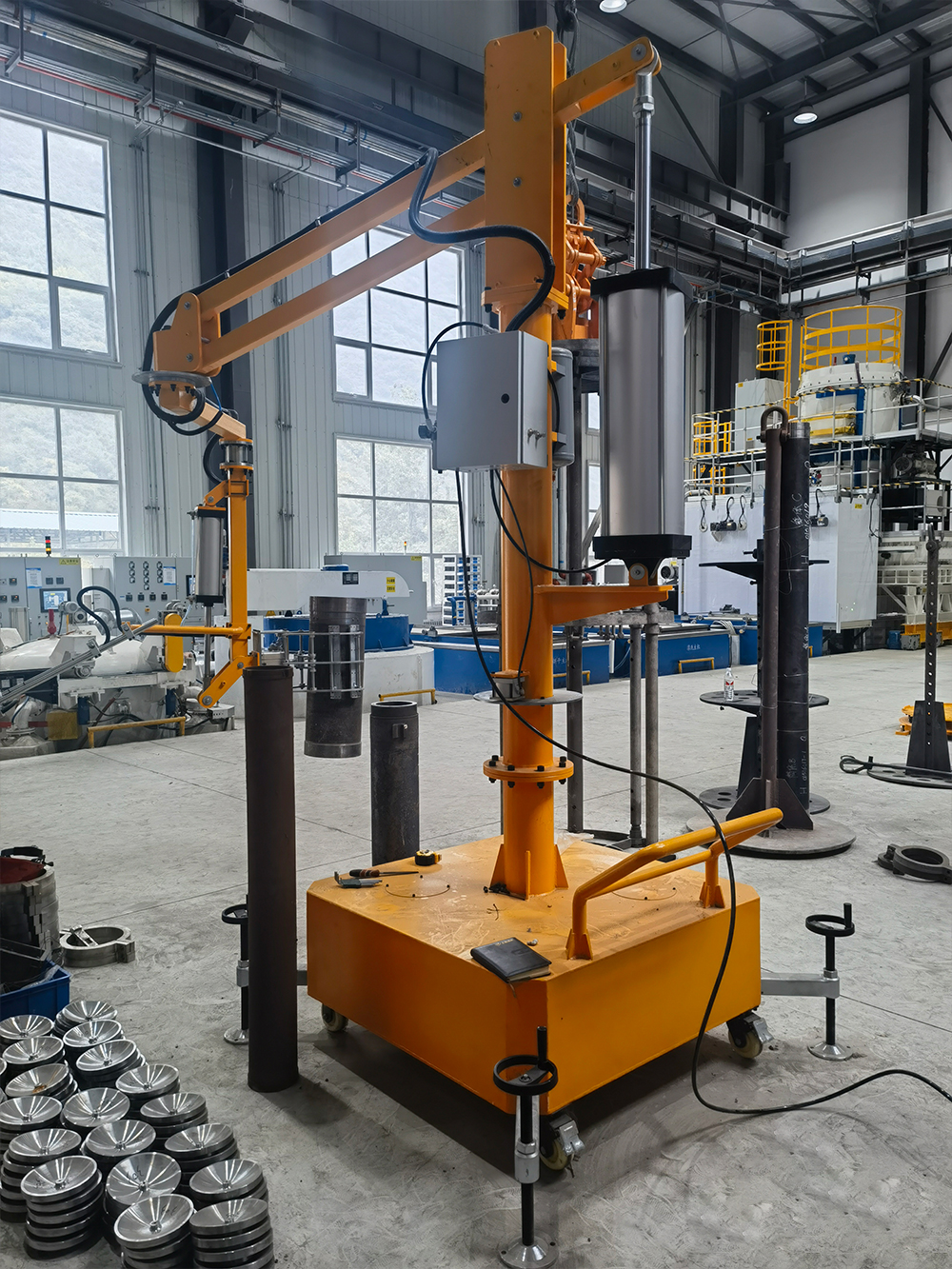

The SZHJ-DZYD Base-Mounted Mobile Pneumatic Power-Assisted Manipulator can be manually towed or pulled by equipment for mobility, adapting to material handling needs across workstations and enabling rotational use in multiple workstation setups. All relevant parameters can be customized according to on-site requirements to achieve optimal operational performance.
Contact
Product consulting
| Equipment Model | Main Model | Rated Load G | Swing Radius R1 | Lifting Stroke H | Maximum Lifting Height H1 | Lowest Point H2 | Base Height H4 | Air Source Pressure P | Air Pressure P |
| SZHJ-DZYD-30 | HJZL-114/133 | 30KG | 2500mm | 1500mm | 2000mm | H1-H | 200mm | 0.5Mpa以上 | 190KG |
| SZHJ-DZYD-50 | HJZL-133 | 50KG | 2500mm | 1500mm | 2000mm | H1-H | 300mm | 0.5Mpa以上 | 370KG |
| SZHJ-DZYD-100 | HJZL-133/158 | 100KG | 2500mm | 1500mm | 2000mm | H1-H | 370mm | 0.5Mpa以上 | 450KG |
| SZHJ-DZYD-200 | HJZL-158/181 | 200KG | 2500mm | 1500mm | 2000mm | H1-H | 根据设计定制 | 0.5Mpa以上 | 510KG |
| SZHJ-DZYD-300 | HJZL-181/272 | 300KG | 2500mm | 1500mm | 2000mm | H1-H | 根据设计定制 | 0.5Mpa以上 | 定制 |
| SZHJ-DZYD-500 | HJZL-272 | 500KG | 2500mm | 1500mm | 2000mm | H1-H | 根据设计定制 | 0.5Mpa以上 | 定制 |
The SZHJ-DZYD Base-Mounted Mobile Pneumatic Power-Assisted Manipulator can be manually towed or pulled by equipment for mobility, adapting to material handling needs across workstations and enabling rotational use in multiple workstation setups. All relevant parameters can be customized according to on-site requirements to achieve optimal operational performance.
